IMCE

Share This Page

All of our cam follower and yoke roller bearings are designed, developed, and manufactured to the highest possible quality, and offer an economic solution to industry-standard principle dimensions. This makes them both readily available, and interchangeable with design improvements, meaning you can enjoy enhanced performance over an extended operating life.

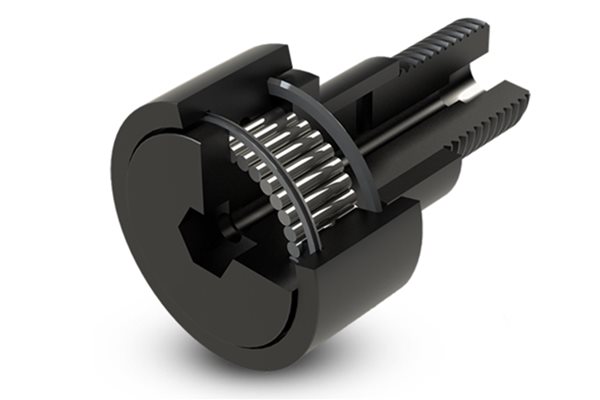

Our IMCE range of products has a full-complement needle arrangement for maximum load capacity, as well as an eccentric collar for easier and more accurate positioning. For more information, please review the product table below and discover the ideal bearing for your application. For tailored support, please reach out to our expert team of bearing engineers today.

Product Details

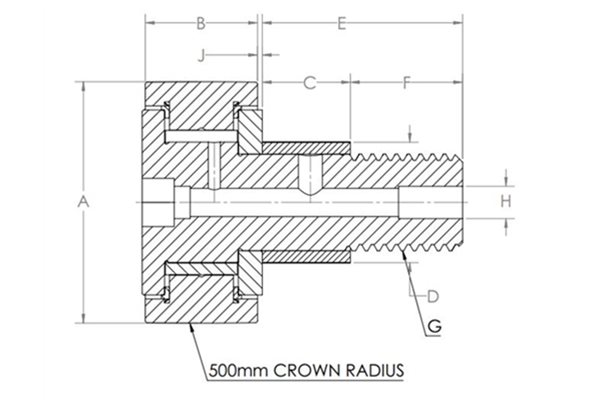

Size Sealed Bearing Part Number  A - Roller OD B - Roller Width C - Stud Dia. D - Stud Length E - Thread Length F - Thread Class G - Oil Hole Centre H - Oil Hole Dia. J - Lube   Fitting Size
mm   mm mm mm mm mm   mm mm
16 IMCE-16-SB 16 11 7 9 16 9 M6X1 - 0.6
19 IMCE-19-SB 19 11 9 11 20 11 M8X1.25 - 0.6
22 IMCE-22-SB 22 12 10 13 23 12 M10X1 - 0.6
26 IMCE-26-SB 26 12 10 13 23 12 M10X1 - 0.6
30 IMCE-30-SB 30 14 11 15 25 14 M12X1.5 3 0.6
32 IMCE-32-SB 32 14 11 15 25 14 M12X1.5 3 0.6
35 IMCE-35-SB 35 18 14 20 32.5 18 M16X1.5 3 0.8
40 IMCE-40-SB 40 20 16 22 36.5 19 M18X1.5 3 0.8
47 IMCE-47-SB 47 24 18 24 40.5 21 M20X1.5 4 0.8
52 IMCE-52-SB 52 24 18 24 40.5 21 M20X1.5 4 0.8
62 IMCE-62-SB 62 29 22 28 49.5 25 M24X1.5 4 0.8
72 IMCE-72-SB 72 29 22 28 49.5 25 M24X1.5 4 0.8
80 IMCE-80-SB 80 35 29 35 63 32 M30X1.5 4 1
85 IMCE-85-SB 85 35 29 35 63 32 M30X1.5 4 1
90 IMCE-90-SB 90 35 29 35 63 32 M30X1.5 4 1

*The standard UNASIS metric cam-follower comes with hexagonal head with hex-port, seals and crowned outer roller diameter.
*Cylindrical roller surface is available, include and "X" suffix in the part number e.g. IMCE-62-X, IMCE-62-SX, IMCE-62-SBX, please refer to the part numbering section.


Size Sealed Bearing Part Number  Corner  Radius Clamping Dia. Min Clamping Torque Max Speed -Grease Speed - Oil Dynamic Load Rating Static Load Rating Mass
mm   mm mm Nm rpm rpm N N kg
13 IMCE-13-SB 0.3 9 2.2 20000 30000 2450 2260 0.01
16 IMCE-16-SB 0.3 11 3 13000 17000 6960 8340 0.019
19 IMCE-19-SB 0.3 13 8 10500 13500 8040 10490 0.029
22 IMCE-22-SB 0.5 15 15 9000 11500 9410 12360 0.044
26 IMCE-26-SB 0.5 15 15 9000 11500 9410 12360 0.056
30 IMCE-30-SB 1 19 22 6400 8300 13240 18140 0.089
32 IMCE-32-SB 1 19 22 6400 8300 13240 18140 0.099
35 IMCE-35-SB 1 24 57 4200 5500 20300 34130 0.171
40 IMCE-40-SB 6 27 85 3300 4300 23240 38540 0.248
47 IMCE-47-SB 8 30 118 2600 3400 30790 57670 0.393
52 IMCE-52-SB 8 30 118 2600 3400 30790 57670 0.455
62 IMCE-62-SB 8 38 216 2100 2700 46580 92630 0.81
72 IMCE-72-SB 8 38 216 2100 2700 46580 92630 1.048
80 IMCE-80-SB 8 51 441 1500 2000 76980 159850 1.642
85 IMCE-85-SB 8 51 441 1500 2000 76980 159850 1.814

*Limiting Speeds shown in the table above should be used as a guideline only as each individual application and load scenario will vary. The figures given assume bearings operating within optimal conditions only.
*Clamping torque is based on dry threads only. If the threads are lubricated, use half the values shown.
