Drill Press Tri-Roller Swaging Tool

Share This Page

Conditions

  • V-Groove Bearing
  • Chamfered Housing
  • Sleeve Not Present

Tool Style Availability

  • Drill Press
  • Portable

Delivery Time

  • Hundreds of most popular sizes held in stock or with competitive delivery times
  • AOG services are available upon request

Instructional Video

The Process

One of UNASIS Bearings’ most popular tools is the Drill Press Tri-Roller Swaging Tool. The tool is utilised with a chamfered housing and a v-groove bearing. The UNASIS precision rollers offer a repeatable and consistent mirror finish on the v-groove of the bearing. The utilisation of proper instructions and world class technical supports makes the rotary swaging process quick and easy.



Please review the UNASIS instruction manual and video for training and process control for customer audit purposes.

Advantages

Technical Support

Immediate Drill Press Tri-Roller Swaging Tool technical support with custom design and manufacturing expertise.

Tools in stock

Access to thousands of UNASIS tools from stock, ready to ship out for AOG requirements.

Cutting-edge Developments

UNASIS Bearings is a leader in bearing tool developments for testing and installation.

Top Quality

The UNASIS Drill Press Tri-Roller Swaging Tools upgraded materials and heat treatment processes are proven to significantly increase tool lifetime

Locating Anvils

UNASIS Drill Press Tri-Roller Swaging Tools are equipped with both primary and secondary locating fixtures. The locating anvils ensure that the bearings are accurately placed in the housing and are properly supposed throughout the swaging process.

Technical Support
Tools in stock
Cutting-edge Developments
Top Quality
Locating Anvils

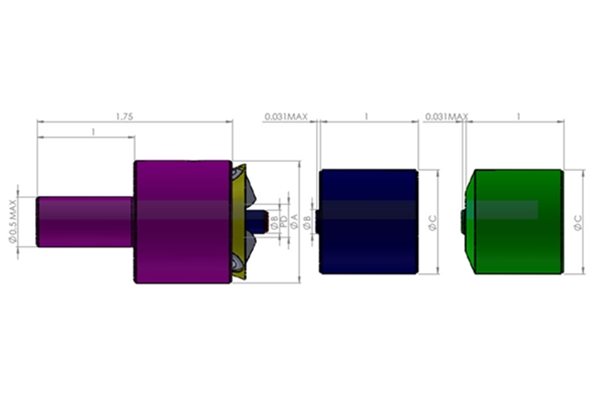

Product Details

UNASIS Drill Press Swaging Tool


Rexnord Part Number

MS14101 Bearings

MS14103 Bearings

A* [in]

B [in]

C* [in]

PD [in]
IDST4101-3

RST1000

MS14101-3

–

1 1/4

0.19

1 1/4

0.5
IDST4103-3

RST1001

–

MS14103-3

1 1/4

0.19

1 1/4

0.555
IDST4103-4

RST1002

–

MS14103-4

1 1/4

0.25

1 1/4

0.555
IDST4101-4

RST1003

MS14101-4

–

1 1/4

0.25

1 1/4

0.586
IDST4103-5

RST1004

–

MS14103-5

1 1/4

0.3125

1 1/4

0.617
IDST4101-5

RST1005

MS14101-5

–

1 1/4

0.3125

1 1/4

0.65
IDST4101-6

RST1006

MS14101-6

–

1 1/2

0.375

1 1/2

0.712
IDST4101-7

RST1007

MS14101-7

–

1 1/2

0.4375

1 1/2

0.806
IDST4103-7

RST1008

–

MS14103-7

1 1/2

0.4375

1 1/2

0.837
IDST4101-8

RST1009

MS14101-8

–

1 1/2

0.5

1 1/2

0.875
IDST4103-8

RST1010

–

MS14103-8

1 1/2

0.5

1 1/2

0.9
IDST4101-9

RST1011

MS14101-9

–

1 3/4

0.5625

1 3/4

0.986
IDST4103-9

RST1012

–

MS14103-9

1 3/4

0.5625

1 3/4

1.025
IDST4101-10

RST1013

MS14101-10

–

1 3/4

0.625

1 3/4

1.062
IDST4103-10

RST1014

–

MS14103-10

1 3/4

0.625

1 3/4

1.087
IDST4103-12

RST1015

–

MS14103-12

2

0.75

2

1.25
IDST4101-12

RST1016

MS14101-12

–

2

0.75

2

1.312
IDST4101-14

RST1017

MS14101-14

–

2 1/4

0.875

2 1/4

1.437
IDST4103-14

RST1018

–

MS14103-14

2 1/4

0.875

2 1/4

1.5
IDST4101-16

RST1019

MS14101-16

–

2 1/4

1

2 1/4

1.625
IDST4103-16

RST1020

–

MS14103-16

2 3/4

1

2 3/4

2



**Tools also available for BACB / EN / NAS / ABS / P2 / S302 and many others bearings**
