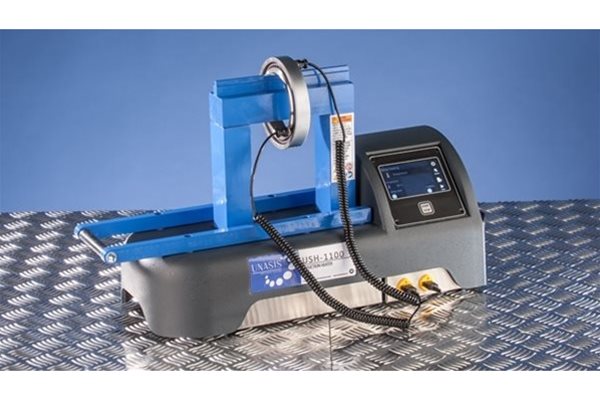

USH-1100

Share This Page

Features

  • 4.3” touchscreen
  • Dual temp
  • Heats up to 50kg
  • 3 yokes of 7mm, 14mm, and 40mm
  • 120V or 230V
  • Temperatures of up to 240°C / 464°F
  • 3-year warranty on the electronic unit



Products

USH-1100-1U

  • 120V with USA Certification

USH-1100-2E

  • 230V with CE Certification

USH-1100-2U

  • 230V with USA Certification



Delivery Time

Popular sizes available from stock.



Bearing Dimensions

Minimum inside diameter: 10mm vertical / 65mm horizontal

Maximum outside diameter: 400 mm

Maximum width: 120mm

Maximum weight: 50kg

Product Details

Aerospace Series UNASIS USH 1100 UNASIS USH 1200 UNASIS USH 1300
Voltage 120V - 230V  120V - 230V  230V
Current   13A - 13A  15A - 16A   16A
Output 1.5 kVA - 3.0 kVA 1.8 kVA - 3.7 kVA  3.7 kVA
Frequency 50-60Hz 50-60Hz 50-60Hz
Temperature measurement Double, ΔT measurement, Log functionality Double, ΔT measurement, Log functionality Double, ΔT measurement, Log functionality
Operating modes Time, Temperature, Temperature or Time, Temperature & Speed Time, Temperature, Temperature or Time, Temperature & Speed Time, Temperature, Temperature or Time, Temperature & Speed
Weight in kg 21 31 52
Max. temperature 240°C / 464°F 240°C / 464°F 240°C / 464°F
Max. bearing weight in kg 50 100 150
Max. OD Ø mm A 400 500 600
Space between poles mm B 120 180 210
Pole height mm C  130 185 205
Pole surface mm D 40 x 50 50 x 50 70 x 80
Dimensions mm (L x W x H) 600 x 226 x 272  702 x 256 x 392  788 x 315 x 456
